DEC600 Series – OPNsense® Desktop Security Appliance + 1 Jahr Lizenz

549,00 € excl. MwSt: 549,00 € * 549.0 EUR

549,00 €

inkl. MwSt:

  • DEC600 Series

Diese Kombination existiert nicht.

In den Warenkorb hinzufügen


Alle Preise exkl. MwSt.
kostenloser Versand in Österreich ab 100,-- Euro
Lieferung in 2 Werktagen bei Verfügbarkeit

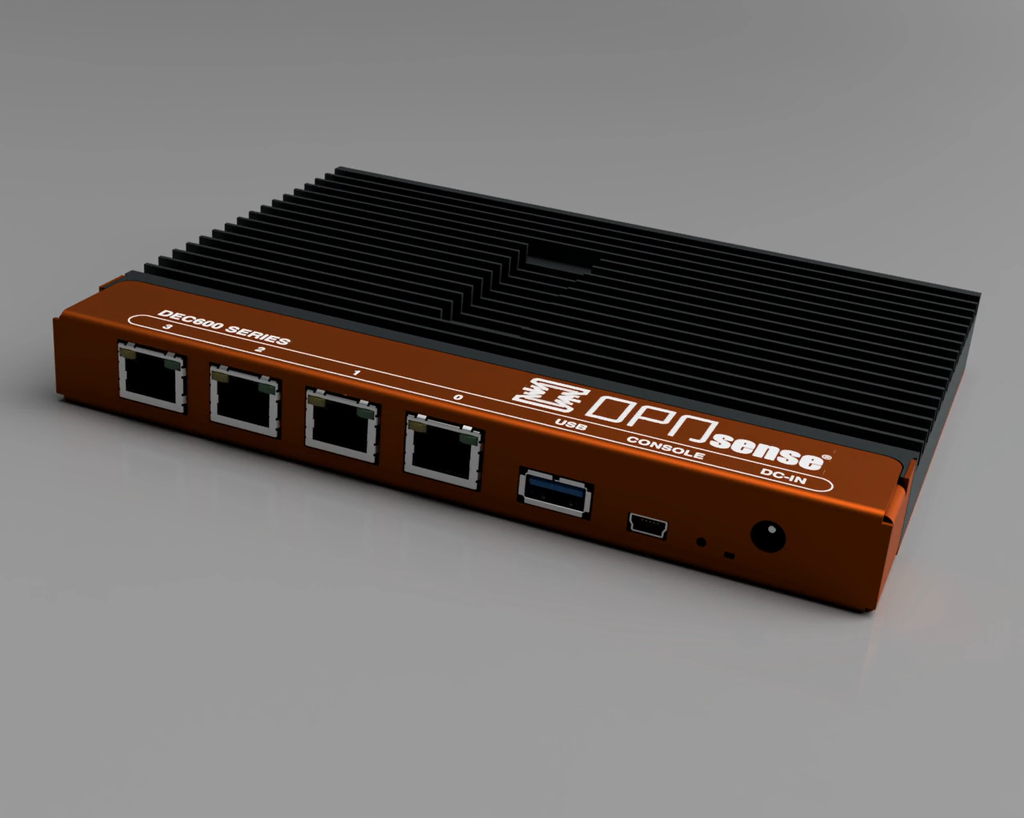

DEC677 / DEC697 OPNsense® Desktop Security Appliance

Full specifications & model comparison

Models

DEC677

DEC697

Ein Bild, das Text, Screenshot, Rechteck, Design enthält.

Automatisch generierte Beschreibung

Ein Bild, das Text, Screenshot, Rechteck, Design enthält.

Automatisch generierte Beschreibung

Software

Preinstalled software

OPNsense®

OPNsense®

License

Open Source + 1 year free Business Edition

Open Source + 1 year free Business Edition

Hardware Specifications

Typical Applications

Firewall / Routing & VPN

Firewall / Routing, VPN, IDPS & Webproxy

GbE RJ45 Ports [ 100/1000/2500Mbps ]

4

4

USB Ports

1

1

Console Port

1

1

Internal Storage

32GB Solid State Flash [integrated uSD]

256GB NVMe Solid State Flash

Memory

4GB DDR3

8GB DDR3

CPU Cores

4 (max frequency 1.8Ghz)

4 (max frequency 1.8Ghz)

Virtual Interfaces (802.1q VLANS)1

4093

4093

System Performance

Firewall Throughput

5000Mbps

5000Mbps

Firewall Packets Per Second

420Kpps

420Kpps

Firewall Port to Port Throughput

2.3 Gbps

2.3 Gbps

Firewall Port to Port Packets Per Second

195Kpps

195Kpps

Concurrent Sessions

3000000

7000000

Connections Per Second

35000

35000

Firewall Latency (RTT)

125us

125us

Firewall Policies (Recommended Maximum)1

10000

10000

IPsec VPN Throughput (AES256GCM16)

600Mbps

600Mbps

IPsec VPN Packet Per Second (AES256GCM16)

50Kpps

50Kpps

Threat Protection Throughput Packet Per Second

N/A

50Kpps

Threat Protection Throughput

N/A

~540Mbps

High Availability with State Synchronisation

Requires Two

Requires Two

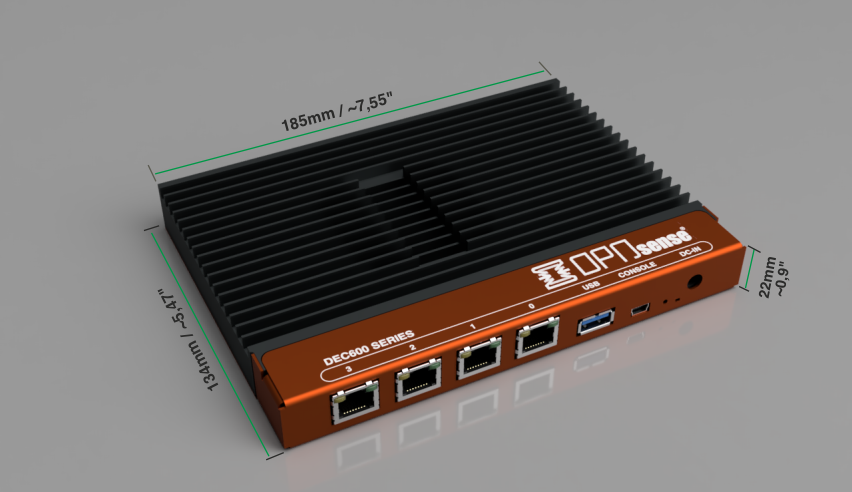

Dimensions

Height x Width x Length (mm)

22 x 185 x 134

22 x 185 x 134

Height x Width x Length (inches)

0.9 x 7.55 x 5.47

0.9 x 7.55 x 5.47

Form Factor

Desktop

Desktop

Weight (appliance only)

0.56Kg

0.6Kg

Weight (appliance + power supply / ac cord)

0.86Kg

0.9Kg

Environment

Power Requirements

100-240VAC, 50-60Hz

100-240VAC, 50-60Hz

Maximum Current (AC)

0.4A

0.4A

Power Consumption (Typical)

13W

13W

Heat Dissipation

44 BTU/hr

44 BTU/hr

Operating Temperature

0 to +40°C

0 to +40°C

Storage Temperature

-20 to +70°C

-20 to +70°C

Humidity

10-90% non-condensing

10-90% non-condensing

Regulatory Compliance

FCC part 15 Class A, CE, Rohs

FCC part 15 Class A, CE, Rohs

The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.

All measurements are based upon TCP traffic unless stated otherwise. Maximum PPS is a peak performance, measured using 100 byte packets.Firewall Port to Port package per seconds is the peak performance when using 1500 byte sized packages. Total Firewall Throughput is calculated by multiplying the maximum packets per second with a standard package size of 1500bytes. IPS performance is measured using a http simulation with random sized small (400-800 bytes) send packages and 1K-8K response packages with 150 simultaneous emulated users and 21000 rules enabled. SSL VPN is measured using AES256GCM16+SHA512 and total throughput is calculated based on system load.Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks. Latency is measured using netperf.
