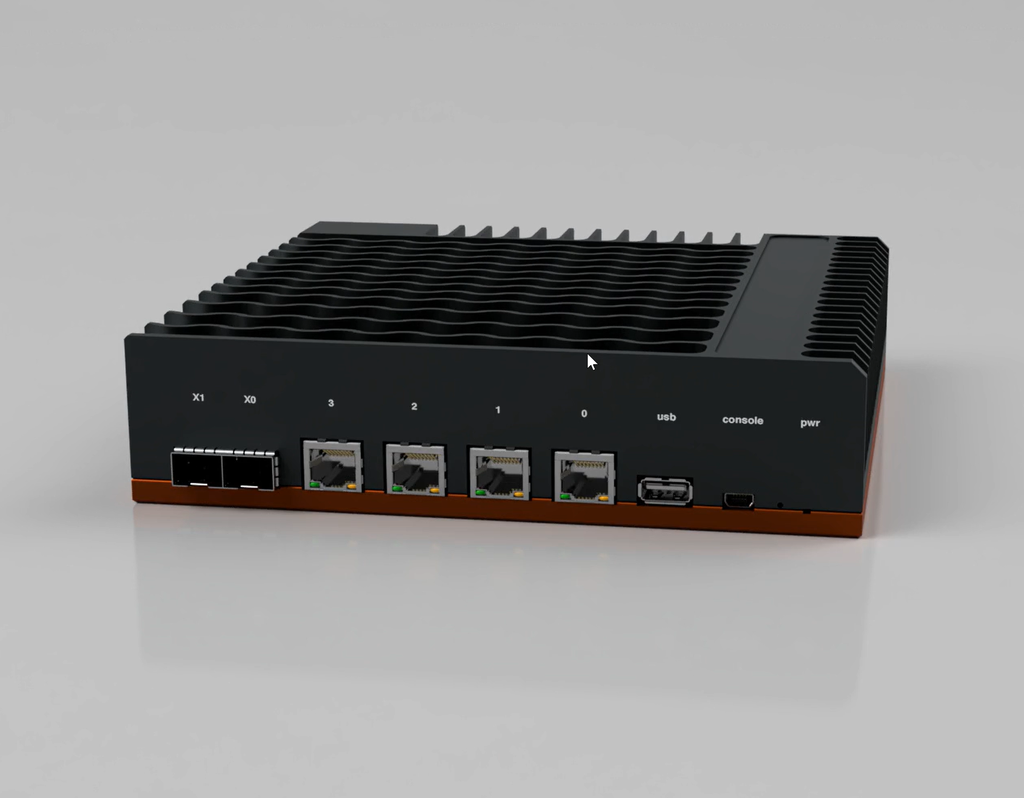

DEC840 / DEC850 OPNsense® Desktop Security Appliance

AMD EPYC™ Performance.
The first embedded appliance that delivers high performance yet doesn't make a sound.
The specially designed cooling profile allows for cool operation even when stressed to the max.

NEW! (Version 2 only) Now comes with 3x 2.5GbE!

¹ The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.

All measurements are based upon TCP traffic unless stated otherwise. Total Firewall Throughput is calculated based on maximum PPS and standard 1500 byte packets. Maximum PPS is measured using 500 byte packets. IPS performance is measured using ET Open and standard 1500 byte package size. SSL VPN is measured using AES256GCM16+SHA512. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks. Latency is measured as an average over 60 seconds.

Supported SFP(+) Modules

When using SFP+Modules, do not mix 2.5/5Gbps and 10Gbps link-speed as the hardware does not support mixing these due to different frequencies.

While most standard LC-LC OM3 SFP+ modules and SFP+ Direct Attached Cables are likely to function we advise to select one of of the known compliant modules from the following list:

SFP+ (Up to 10G)

--------------------------------------------------------------------------------------

TESTED & WORKING:

•  [FIBER - SR] UP-TR-SR-CI 10G SFP+ 850nm 300m DOM  (Uptimed)

•  [DAC] ARUBA 10G SFP+ 1m DAC  (Aruba)

•  [DAC] CISCO SFP-H10GB-CU1M 1m Direct Attach  (Cisco)

•  [DAC] NETGEAR AXC761 10G SFP+ PASSIVE COPPER CABLE 1M (MOST RECENT VERSION)

•  [FIBER - LR] SFP-10GLR-31 1/10G SFP+ 1310nm 10km  (FS)

•  [FIBER - SR] SFP-10GSR-85 10G SFP+ 850nm 300m  (FS)

•  [DAC] STARTECH DACSFP10G1M (Startech)

•  [DAC] SFPP-PC02 10G SFP+ DAC 2M (FS)

•  [DAC] SFPP-PC005 10G SFP+ DAC 0.5M  (FS)

•  [RJ45] SFP-10G-T 10GBASE-T SFP+ 30m  (FS)

•  [FIBER - SR] IBM FTLX8571D3BCL-IC 850nm

•  [FIBER - SR] UBIQUITI UF-MM-10G 300m 850nm

•  [DAC] UBIQUITI 10G 1M DAC

•  [FIBER-SR] Mellanox MFM1T01A-SR (Mellanox)

SFP (Up to 1G)

--------------------------------------------------------------------------------------

TESTED & WORKING:

• [RJ45] SFP-GB-GE-T 10/100/1000BASE-T SFP 100m TESTED WITH S/N: F1940333300 (FS)

• [FIBER - LR BiDi] SFP-GE-BX 1000BASE SFP 1310/1490 10Km (FS)

• [FIBER - LR BiDi] SFP-GE-BX 1000BASE SFP 1490/1310 10Km (FS)
